Опции для маршрутизаторов HUAWEI

Модуль SRU-600H - Service and Router Unit 600H, 14*10GE (SFP+), 10*GE Copper, 1*USB2.0) 02312NEV. Технические характеристики Huawei SRU-600H Item Specifications Card type EXSIC Hot swap Supported Processor 16-core x 2.26 GHz Memory 16 GB Flash 4 GB To view...

Модуль SRU-400H (Service and Router Unit 400H, 14*10GE(SFP+), 10*GE Copper, 1*USB2.0) 02312NEU Item Specifications Card type EXSIC Hot swap Supported Processor 16-core, 2.26 GHz Memory 8 GB Flash 2 GB To view the available memory size, run the dir command....

Модуль AR-2X10GL-W (2-Port 10GE Optical Ports Interface Card) 03022STN Item Specifications Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 201 mm x 223.5 mm (0.78 in. x 7.91 in. x 8.80 in.) Maximum power consumption: 19 W...

Модуль AR0MXEGFTA00 (24-Port 10/100/1000BASE(RJ45)-L2/L3 Ethernet Switch Electrical Interface Card) 03020MNS Item Specifications Card type XSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 40.14 mm x 201 mm x 223.5 mm (1.58 in. x 7.91 in. x 8.80...

Модуль AR0MWMF9TT00 (8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE(RJ45)-L2 Ethernet Switch Electrical Interface Card) 03020XTN Item Specifications Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 201 mm x 223.5 mm (0.78...

Модуль AR0MWDAS8A01 (8-Port Async Serial Port Interface Card) 03020XBH Item Specification Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 201 mm x 223.5 mm (0.78 in. x 7.91 in. x 8.80 in.) Maximum power consumption: 6 W...

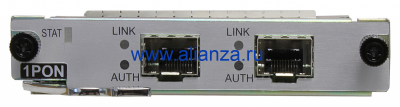

Модуль AR0MSOPP2A00 (1-Port GPON/EPON Dual-mode Interface Card) 03020TJE Item Specifications Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 10 W...

Модуль AR0MSLS1XA00 (1-Port 4 Pair G.SHDSL WAN Interface Module) 02310DRN Item Specification Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 9 W...

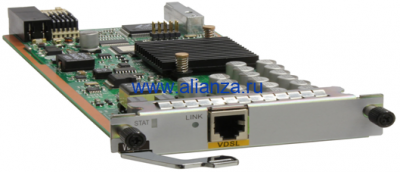

Модуль AR01SLV1XA (1-Port VDSL2 over POTS WAN Interface card) 02310JLJ Item Specifications Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 11 W...

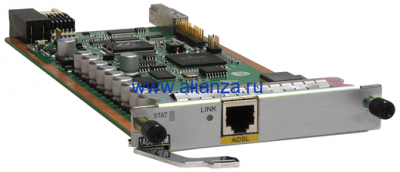

Модуль AR0MSLB1XA01 (1-Port ADSL2+ ANNEX B/J WAN Interface Card) 02310GBA Item Specification Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 6 W...

Модуль AR0MSLA1XA01 (1-Port ADSL2+ ANNEX A/M WAN Interface Module) 02310GAX Item Specification Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 6 W...

Модуль AR0MSEF2TA00 (2-Port FE WAN Interface Card) 03020XTQ Item Specifications Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 4 W Weight: 0.3 kg...

Модуль AR0MSEG1CA00 (1-Port GE Combo WAN Interface Card) 03020XTR Item Specifications Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 4 W Weight:...

Модуль AR0MSDSA2A00 (2-Port Sync/Async Serial Port Interface Card) 03020SAY Item Specification Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 7 W...

Модуль AR0MSDSA1A00 (1-Port Sync/Async Serial Port Interface Card) 03020YNB Item Specification Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 6 W...

Модуль AR0MSDE12A00 (2-Port Fractional Channelized E1/T1 WAN Interface Card) 03020UDU E1-F interface attributes Attribute Description Connector type DB9 Standards compliance G.703, G.704 Interface rate 2.048 Mbit/s Working mode Fractional channelized E1 Cable...

Модуль AR0MSDME2A00 (2-Port Channelized E1/T1/PRI/VE1 Multiflex Trunk Interface Card - SIC) 03020YNR CE1 interface attributes Attribute Description Connector type DB9 Standards compliance G.703, G.704 Interface rate 2.048 Mbit/s Working mode E1, CE1, ISDN PRI, VE1...

Модуль AR0MSDE11A00 (1-Port Fractional Channelized E1/T1 WAN Interface Card) 03020YNT E1-F interface attributes Attribute Description Connector type DB9 Standards compliance G.703, G.704 Interface rate 2.048 Mbit/s Working mode Fractional channelized E1 Cable...

Модуль AR0MSDME1A00 (1-Port Channelized E1/T1/PRI/VE1 Multiflex Trunk Interface Card) 03020YNU CE1 interface attributes Attribute Description Connector type DB9 Standards compliance G.703, G.704 Interface rate 2.048 Mbit/s Working mode E1, CE1, ISDN PRI, VE1...

Модуль AR-6EM-W (6-Port E&M (RJ45) Trunk Interface Card) 03022CPR Item Specifications Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 201 mm x 223.5 mm x 19.82 mm (7.91 in. x 8.80 in. x 0.78 in) Maximum power consumption: 9 W Weight:...

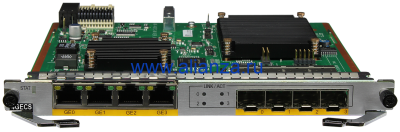

Модуль AR-4GECS-W - 4-Port GE Combo WAN Interface Card, 03022CPN. Технические характеристики Item Specification Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 201 mm x 223.5 mm (0.78 in. x 7.91 in. x 8.80 in.) Maximum power...

Модуль AR-8SA-W (8-Port Synchronous/Asynchronous WAN Interface Card) 03022CPM Item Specification Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 201 mm x 223.5 mm (0.78 in. x 7.91 in. x 8.80 in.) Maximum power consumption: 27...

Модуль AR-9ES2-W - 8 х 100BASE-RJ45 and 1 х 1000BASE-RJ45 L2 Ethernet interface card 03021UJL. Технические характеристики Huawei AR-9ES2-W Item Specifications Card type WSIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 201 mm x 223.5 mm...

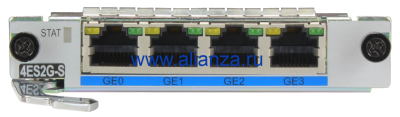

Модуль AR-4ES2G-S (4-Port 1000BASE-RJ45 L2 Ethernet Interface Card) 03021VCC Item Specifications Card type SIC Hot swap Supported Physical specifications Dimensions (H x W x D): 19.82 mm x 100.1 mm x 223.5 mm (0.78 in. x 3.94 in. x 8.80 in.) Maximum power consumption: 5...
